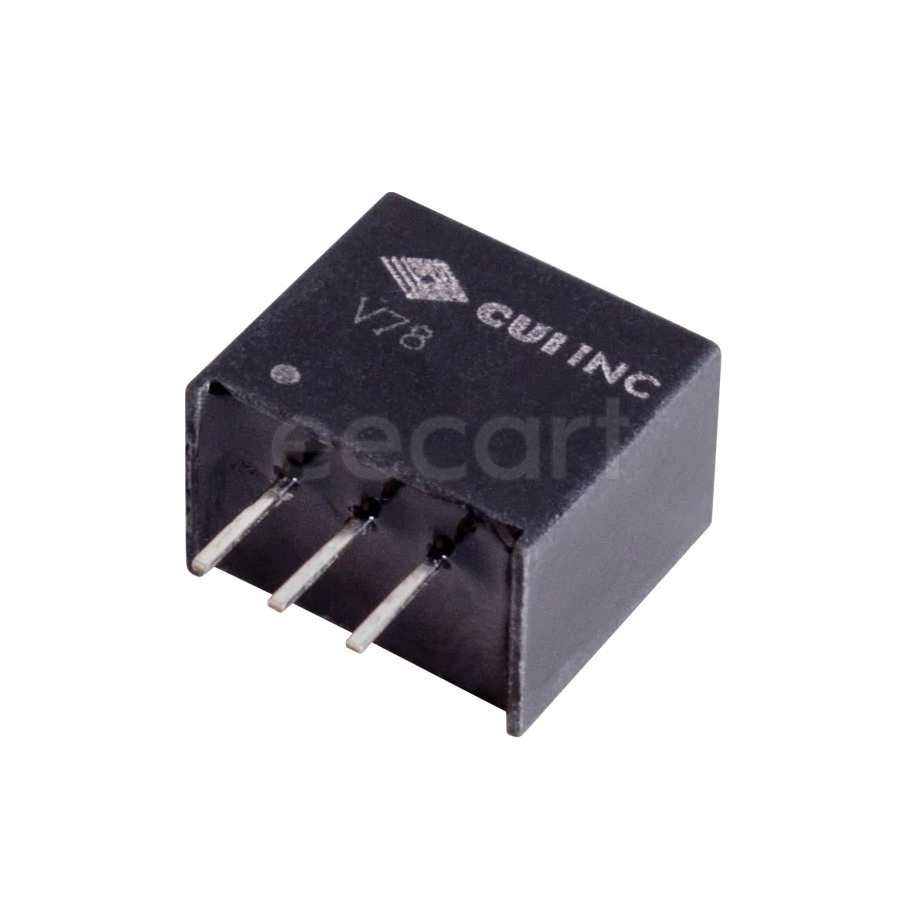

V7803-500
Manufacturer:
Same Sky
Mfr.Part #:
V7803-500
Datasheet:
Description:
DC to DC Converters SIP-3 Modules Through Hole Nominal Input Voltage:9 V Min Input Voltage:4.75 V Max Input Voltage:28 V 90 %
| Parameter | Value |
|---|---|
| Length | 11.6 mm |
| Width | 7.5 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 10.2 mm |
| Packaging | Tube |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Features | OTP, SCP |
| Min Input Voltage | 4.75 V |
| Output Voltage | 3.3 V |
| Max Power Dissipation | 1.65 W |
| Max Output Current | 500 mA |
| Max Input Voltage | 28 V |
| Number of Outputs | 1 |
| Output Power | 1.65 W |
| Current - Output 1 | 500 mA |
| Efficiency | 90 % |
| Voltage - Output 1 | 3.3 V |
| Nominal Input Voltage | 9 V |
| Isolation | Non-Isolated |
| Schedule B | 8542390000 |
| Output Current-Channel 1 | 500 mA |
| Output Voltage-Channel 1 | 3.3 V |
